View "Message Sending" Function Logs

2024-09-05

This document primarily introduces the function logs generated by message sending tasks in Guance.

Message result logs source:message_send_result have been temporarily removed

According to the iteration requirements of 2025-05-14, the writing of message sending results into user space has been paused.

Original source:MD_send_result logs have been removed

After the 2025-04 version, the result logs of message sending will be recorded in the respective workspace logs.

Users can directly search and view the message sending records in the log Explorers of their respective workspaces using source:message_send_result message_type:xxxxx.

Logs for 'Message Sending Task source:DFF_task_record_func' are different from 'Message Result Log source:message_send_result'

Do not confuse 'Message Result Logs' with 'Message Sending Task Logs'.

'Message Sending Task Logs' are essentially 'Function Task Logs', which are written to specified reporting addresses according to Func 'Management / System Configuration'.

'Message Result Logs' are written to individual spaces, containing only sending parameters and results, and are used in conjunction with Guance for users to view.

1. Introduction

Like other functions executed in DataFlux Func, after configuring function logs to be reported to Guance, the logs of message sending tasks can also be conveniently queried on the Guance platform.

For information on how to configure function logs to be reported to Guance and explanations of the reported fields, please refer to Manual / Deployment and Maintenance / Reporting Self-Observation Data

2. Basic Queries

Key fields:

Field Type Description
source str Message sending task logs: DFF_task_record_func
Message result logs: message_send_result
workspace_uuid str Associated Guance workspace UUID
Format: wksp_xxxxx
monitor_checker_ids str(JSON) List of involved monitor IDs
Only applicable for monitoring alert messages
Format: [ "rul_xxxxx", "rul_yyyyy" ]
event_ids str(JSON) List of involved event IDs
Only applicable for monitoring alert messages
Format: [ "event-xxxxx", "event-yyyyy" ]
message_type enum Message task type, see below X. Message Types
exception_type str Error type
Example: WeChat message sending failure "WechatSendingFailure"
exception str Specific error
Example: WechatSendingFailure('Status Code: 200. Response: {"errcode":40058, ... <略> }

In the Guance 'Log Explorer', filling in the following filtering conditions will filter out all execution logs of message sending tasks:

Text Only
1
source:DFF_task_record_func script_id:message_desk__api

If you need to view logs of a specific type of message, add the message_type filtering condition, such as:

Text Only
1
source:DFF_task_record_func script_id:message_desk__api message_type:mail

If you only want to view error logs, add the status filtering condition, such as:

Text Only
1
source:DFF_task_record_func script_id:message_desk__api -status:ok

3. Common Query Conditions

Below are common query conditions; copy the query conditions into the filter bar of the Guance 'Log Explorer' for searching.

All message sending task logs:

Text Only
1
source:DFF_task_record_func script_id:message_desk__api

Failed message sending task logs:

Text Only
1
source:DFF_task_record_func script_id:message_desk__api -status:ok

All message sending task logs for a specific workspace:

Text Only
1
source:DFF_task_record_func script_id:message_desk__api workspace_uuid:wksp_xxxxx

Failed message sending task logs for a specific workspace:

Text Only
1
source:DFF_task_record_func script_id:message_desk__api workspace_uuid:wksp_xxxxx -status:ok

Message sending task logs for a specific message type:

Text Only
1
source:DFF_task_record_func script_id:message_desk__api message_type:xxxxx

Failed message sending task logs for a specific message type:

Text Only
1
source:DFF_task_record_func script_id:message_desk__api message_type:xxxxx -status:ok

4. Querying Non-'Monitor Alert' Messages

Non-'Monitor Alert' messages may invoke different Func functions depending on the actual situation; please consult the caller for the method used.

Here we describe typical invocation methods.

4.1 Direct Message Sending

For sending general notification emails, etc., the MessageDesk script set's functions might be called directly.

The query method for corresponding logs is as follows:

Directly send email
1
func_id:message_desk__api.send_mail
All message sending tasks
1
func_id:message_desk__api.*

4.2 Delayed Message Sending

For some messages that require delayed sending (such as pre-mute notification emails), the message task function under 'Guance support' might be called, with the sending time specified.

Log time for delayed message sending

Note that delayed message sending occurs in three phases:

  1. Task setup phase: For example, at 00:00, the user performs an operation in the UI, creating a task to send a message at 05:00 (Note: The log time for this task is 00:00, not 05:00).

  2. Delayed message dequeuing phase: When it reaches 05:00, the system internally retrieves the task from phase 1 and starts an asynchronous sending task.

  3. Actual sending phase: The message is actually sent.

User UI operation during 'Task Setup Phase'

Generally, delayed trigger tasks originate from user UI operations.

Specifically, if a user adds a mute rule starting at 00:30:00 at 00:00:00, and specifies sending a notification 5 minutes before it takes effect,

then the user's action of 'Adding Mute Rule' is considered the 'UI Operation', occurring at time 00:00:00.

The delayed task sending time would then be '00:30:00 - 5 minutes', i.e., 00:25:00.

Additionally, since Func only provides basic functionality, specific business logic (e.g., when certain functions are called) should be consulted with Studio-side development.

The query method for corresponding logs is as follows:

Check the logs to confirm whether the delayed task was correctly configured.

The query time corresponds to the UI operation time.

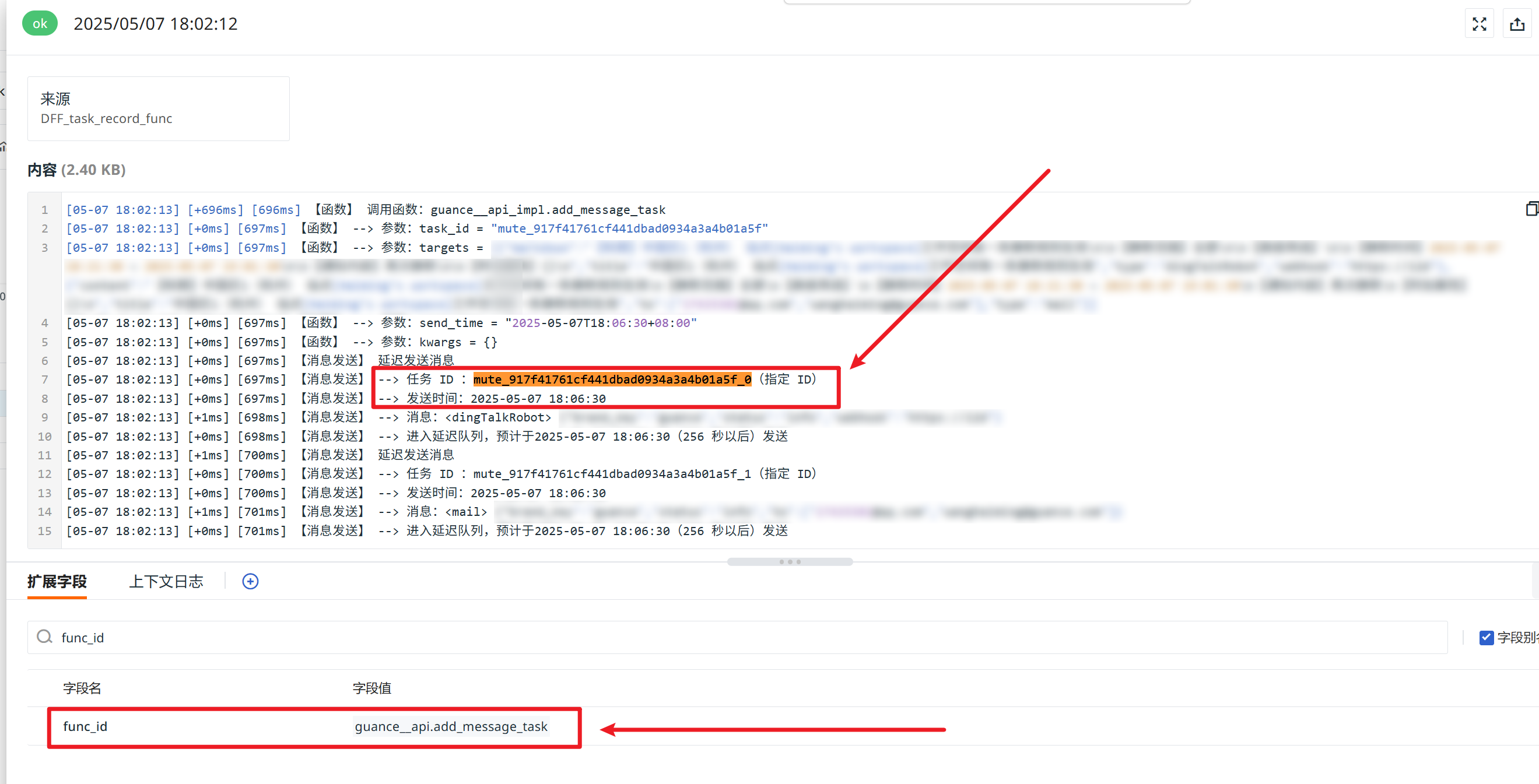

Add / Replace Message Task
1
func_id:guance__api.add_message_task

Check the logs to confirm whether the delayed task was correctly dequeued.

The query time corresponds to the 'Scheduled Send Time' from the above 1., with an appropriately expanded range.

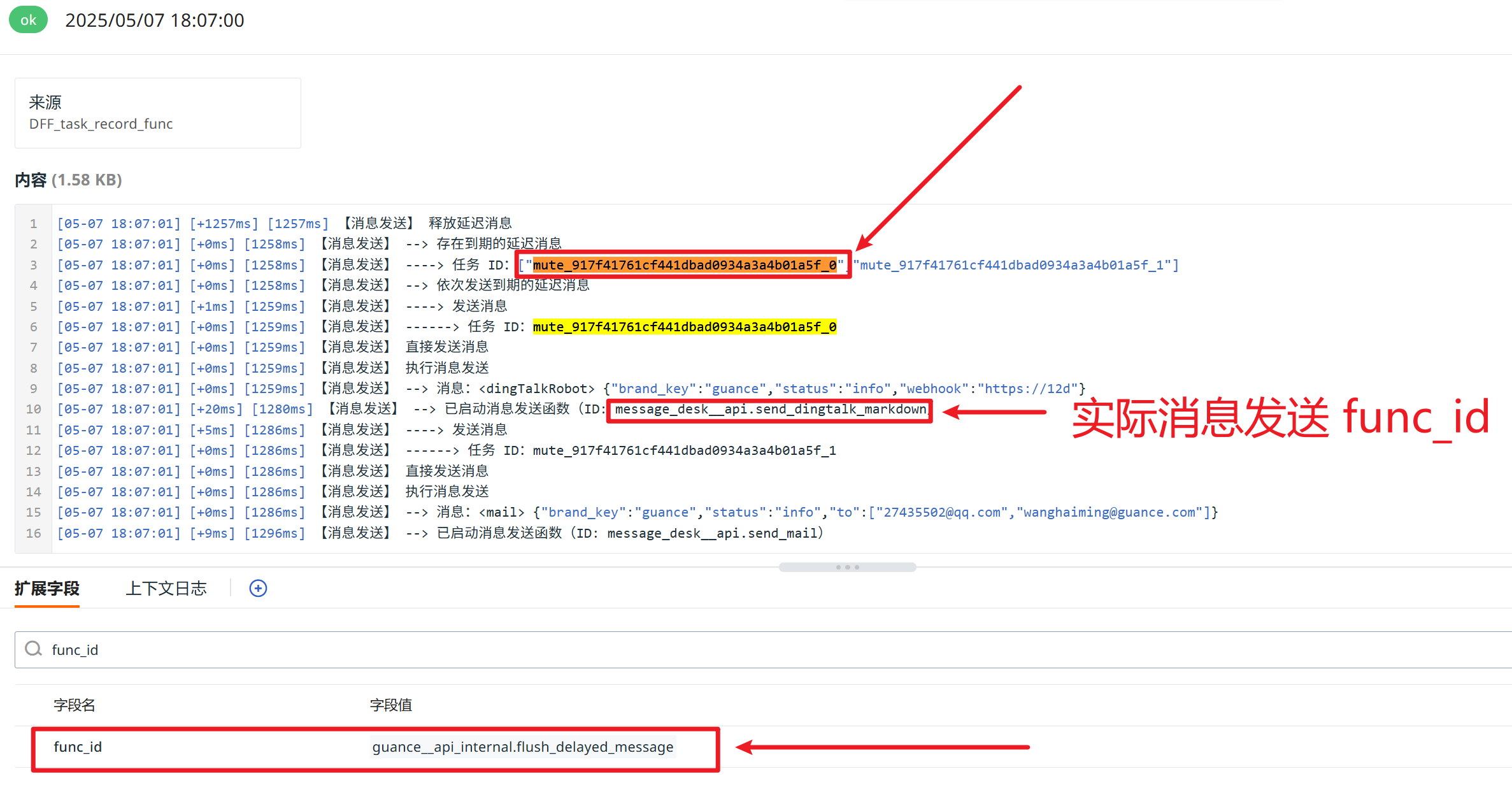

Delayed Task Dequeue Logs
1
func_id:guance__api_internal.flush_delayed_message

Based on the actual function ID called in 'the above 2.', query the corresponding logs to check the sending result.

The query time corresponds to the same time as 'the above 2.' with an appropriately expanded range.

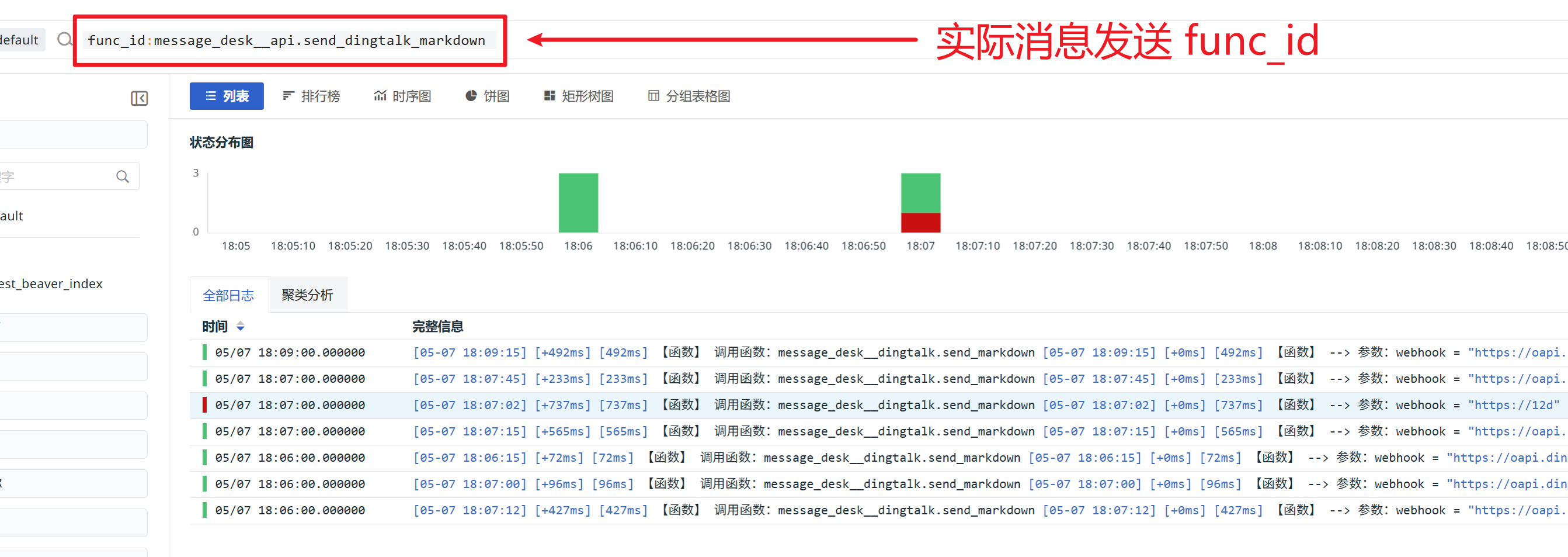

Actual Message Sending Logs
1
func_id:message_desk__api.xxxxx

If it involves canceling already-set delayed sending tasks, you can search using the following filtering conditions:

Delete Message Task
1
func_id:guance__api.delete_message_task

X. Message Types

The correspondence between the values of the message_type field and the message types is shown in the table below:

message_type Message Type
"mail" Email
"dingTalkRobot" DingTalk Robot
"feishuRobot" Lark Robot
"wechatRobot" WeCom Robot
"HTTPRequest" HTTP Request
"jiguang" Jiguang Push
"sms" SMS
"slackIncomingWebhook" Slack Incoming Webhook
"teamsWorkflowWebhook" Teams Workflow Webhook
